Furuno GP-90 GPS / WAAS Navigator:
Set of Furuno GP-90 Marine GPS/WAAS Navigator display unit with GPS Antenna (Furuno GPA017S) is for sale. This Furuno GPS model suits virtually every type of vessel from fishing boat, speed boat, cargo to passenger ship, etc. It is widely accepted worldwide for safe marine navigation of the vessels. We always have several sets of this model in stock and we can supply it across glob at a reasonable price.
All our Furuno GP 90 marine GPS sets are tested and in proper working condition.

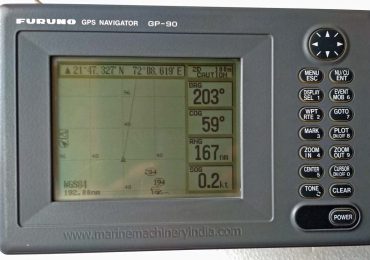

Sample images of Furuno GP 90 GPS WAAS Navigator are shown here.
Send us your inquiry for Furuno GP-90
Furuno GP-90 GPS Navigator – Overview:
- This model Furuno GP90 is a high-performance GPS/WAAS navigator system developed for typically every type of ships
- This Furuno model meets IMO Res MSC.112(73) and IEC 61108-1 Ed.2 for SOLAS carriage requirements on and after July 1, 2003
- Built on Furuno’s high-performance 12 channel, parallel receiver this Furuno GP 90 GPS WAAS system offers a wide range of graphic and data display modes
- Advanced Electronic Position-Fixing System (EPFS) of Furuno GP 90 meets New IMO Performance Requirements and IEC Testing Standards.
- This model Furuno GPS GP 90 is DGPS Ready Receiver which can be linked with an external Differential beacon receiver
- Silver Bright LCD Display of 6 Inches
- Watertight Aluminum Cabinet makes it sturdy
- Furuno GP 90 displays Comprehensive Navigation Data
- 3-D Highway Display
- Menu Driven Easy Operation
- Furuno GP90’s Memory can store 999 Waypoints and 30 Routes
- Man Overboard Feature with Continually Updated R/B to Mob Point
- Memory Storage Capacity of 2000 Track points and Marks, way-points up to 999 and 30 routes each containing up to 30 way-points
- Position Display in L/L or Loran-C TD LOP’S
- Multiple Alarms can be set on GP90
- Optional Digital Display of Water Temperature and Depth
- GP 90 GPS Navigator provides 200 or 400 Pulses NM Log Output
- Provision for Autopilot Output Connection
- 4 input or output Data Ports
- Increased navigational effectiveness and safety by delivering accurate GPS data to other navigation equipment attached like Radar, AIS, INS, etc.
SOLAS carriage requirements and Furuno GP-90 GPS / WAAS system:
Furuno GP-90 GPS WAAS system is a perfect option for SOLAS carriage requirements as a stand alone GPS device as well as sensor for Automatic Identification System, Radar and Voyage Data Recorder, etc.
Furuno GP-90 GPS WAAS Navigator is designed according to SOLAS ships compliance requirements with keeping in mind the new GPS performance standard IMO Res MSC.112(73) and associated IEC standards requirements applicable on and after 1st July 2003. This marine GPS / WAAS model GP-90 by Furuno is a highly accurate and reliable standalone EPFS – Electronic Position-Fixing System, which provides complete navigation solution to the AIS, Radar and Voyage Data Recorder and other equipment.
Improved receiver dependability by fault detection using five satellites, i.e., Receiver Autonomous Integrity Monitoring (RAIM). It shows the integrity status in Safe, Caution, or Unsafe label. These indications are given corresponding to the accuracy level, 10 m or 100 m. RAIM also works on DGPS signals as chosen by the user.
Various display modes to choose from:
User can choose from various display modes available like VideoPlotter, Text, Highway, etc. The highway mode provides insight to the user on how to steer and where the next way-point is located relative to the ship. This could be very useful while following series of way-points along a route plan.
WAAS receiver of Furuno GP-90 improves the position accuracy and DGPS with an internal or external differential receiver is optionally available.
It comprises of a LCD display and an antenna unit. The display is a 6 inch silver bright LCD which gives optimal viewing under hard sunlight. Backup or remote operation feasibility to ensure system availability by dual configuration with a second system.
Furuno GP-90 – Technical Specifications:
| GPS: | |
| Receiver: | 12 discrete channels all-in-view, C/A code |
| RX Frequency: | L1 (1575.42 MHz) |
| Time to First Fix: | 12 s (Warm start) |
| Tracking Velocity: | 900 kt |
| Geodetic System: | WGS-84 (NAD-27 or others selectable) |
| Update Rate: | 1 s |
| GPS Accuracy: | 10 m (95%) |
| Display: |
|
| Display Modes: |
|
| Video-Plotter: | Scale: 0.02 to 320.0 nm, Plot Interval: 1 s – 60 min or 0.01-99.99 nm |
| Memory Capacity: |
|
| Alarms: | Arrival, anchor watch, XTE, speed, time, water depth, trip, DGPS and WAAS |
| Integrity indication: | Safe, Caution, Unsafe at accuracy level of 10 m or 100 m |
| Interface: (IEC 61162-1 Ed 2, NMEA 0183) |
|
| POWER SUPPLY: | 12-24 VDC, 0.8-0.4 A |
| Weight: |
|
If you are looking to buy a Furuno GP-90 GPS WAAS Navigator set, please contact us for further details. We have several ready to dispatch sets of this model in our stock. We ship worldwide.
